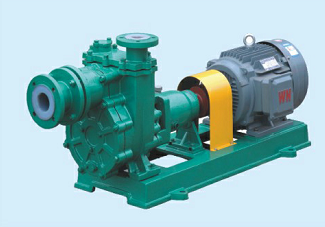

一、ZCQ型自吸式氟塑料磁力泵简介ZCQ series self-priming fluorine plastic magnetic pump



　　ZCQ系列自吸式磁力驱动泵，是自吸泵与磁力泵的完美组合。采用磁力耦合传动,不存在动密封点.因此防止一般轴传动式离心泵轴封外跑、冒、滴、漏的现象。又具有良好的自吸功能。其过流部件采用耐腐性氟材料。因此广泛用于医药、食品、制碱、印染、涂装等行业及易燃易爆、易挥发.有毒、有机溶剂和贵重液体的输送。



　　适用温度:-20℃-100℃



　　ZCQ series self-priming fluorine plastic magnetic pump is the perfect combination ofscll-priming pump and magnetic pump.using magnetic coupling drive,without dynamic sealpoint,solvng general haft crive centrifugal pump seal outside run.,drip problem.Also hasgood self-priming function.lts flow components are using corrosion-resistant fluorine materias.if is widelly used in medicine,food,alkdli,prinling and dyeing.cogling and otlher industies andexplosive,volatile,toxic trarsport,organic solvents and precous liquid.



　　Applcable femperature:-20C~100-c



　　二、ZCQ型自吸式氟塑料磁力泵型号意义Model sense



　　ZCQ50-32-160F



　　ZCQ-自吸磁力驱动泵Self-prirning magnelic arive pump



　　50-泵进口直径是50mm.llnlet diameter is 50mm



　　32-泵出口直径是32mm Outlet diameter is 32 mm



　　160-叶轮名义直径160mm lmpeller nominal diameter i 160 mm



　　F-泵过流部件用氟塑料制造,Fow parts cre fluorine plastic

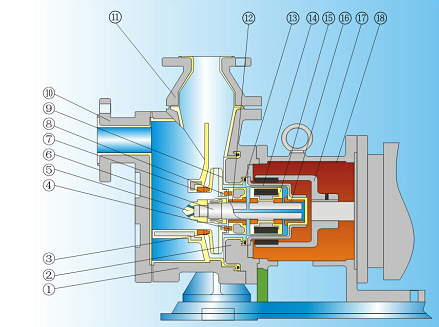

　　三、结构示意图Structure and material



　　1泵体pump body2泵盖pump cover



　　3叶轮前口环Impeller front ring 4止退环Thrust ring



　　5叶轮螺母Impeller nut 6主轴Spindle



　　7静环Static ring



　　8叶轮后口环Impeller back ring 9叶轮Impeller



　　10前盖Front cover11出口法兰Outlet flange12前轴承Front bearing



　　13隔离套密封圈Isolation cover sealing ring14隔离套总成Isolation cover assembly



　　15转子总成Rotor assembly



　　16后轴承Bearing block17外磁Outside magnetic18支架Stent

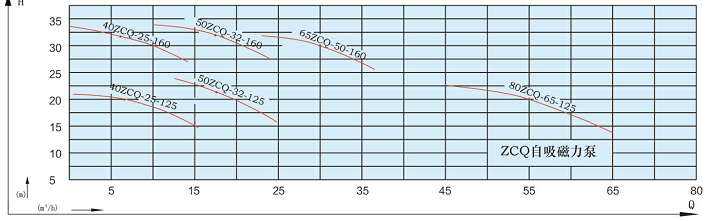

　　四、性能曲线图(n=2900r/min)Performance Curve Diagram

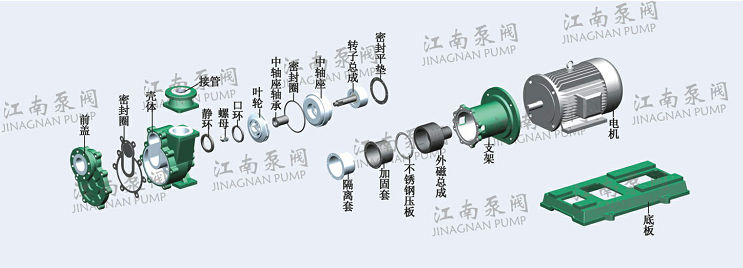

　　五、零部件示意图Structure and material

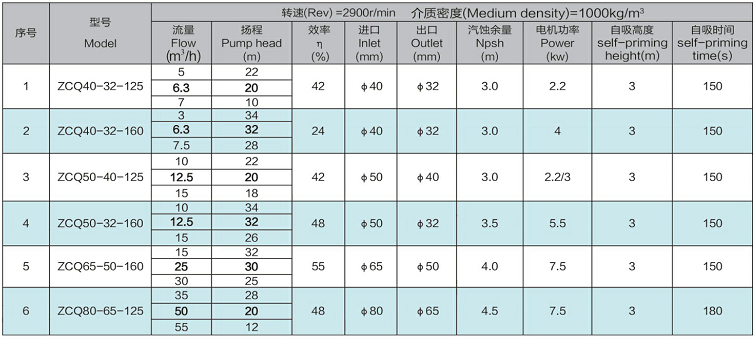

　　六、泵的型号与性能参数Model and technical data



　　*表格中流量扬程加粗字体为甚本型bold font as the standard model
